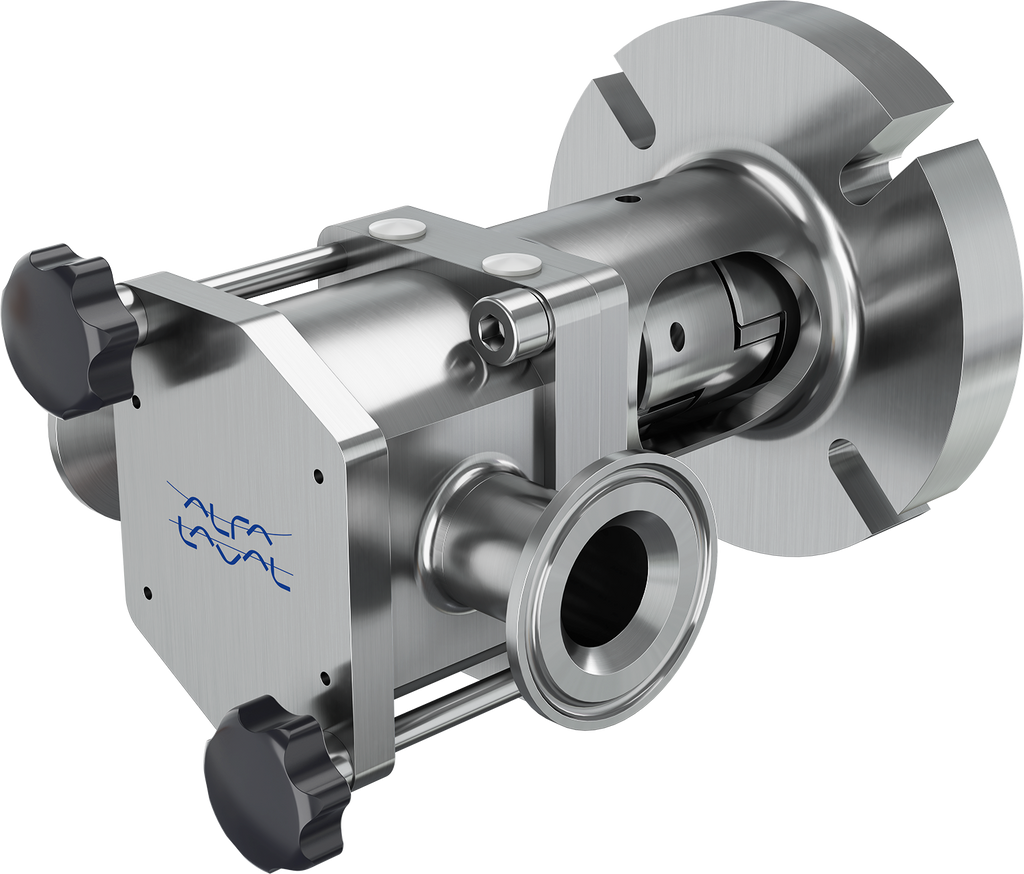

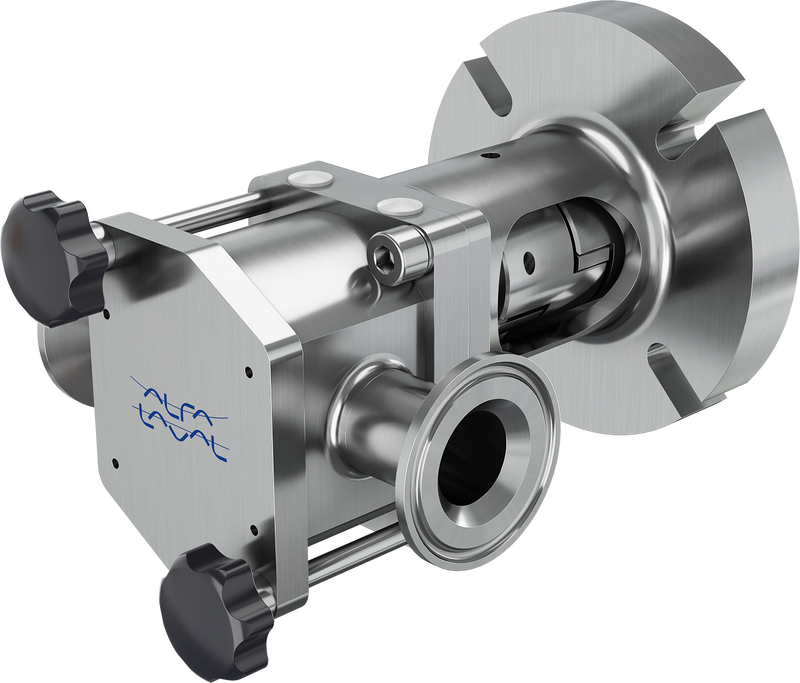

M220 - 1" Tri-Clamp (ASME BPE)
M220 - 1" Tri-Clamp (ASME BPE)
Roll over image to zoom in Click on image to zoom
M220 - 1" Tri-Clamp (ASME BPE)
M220 - 1" Tri-Clamp (ASME BPE)

M220 - 1" Tri-Clamp (ASME BPE)

Manufacturer:ALFA LAVAL
Item number: 8010030569
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Delivery time:On request
  • Product Model: M220
  • Motor Type: Mounted Unit
  • Mounting options: Flange Only (No Coupling) for D80 Motor
  • Product seal: Stainless Steel / Carbon
  • Elastomer: FPM
  • Gears: SS/PTFE Impregnated - 60°C
  • Port size: 1
  • Port type: Male Tri-Clamp (ASME BPE)
  • Weight: 4.8 kg
Price:
Request for price

Shipping calculated at checkout

Prices shown are without VAT.

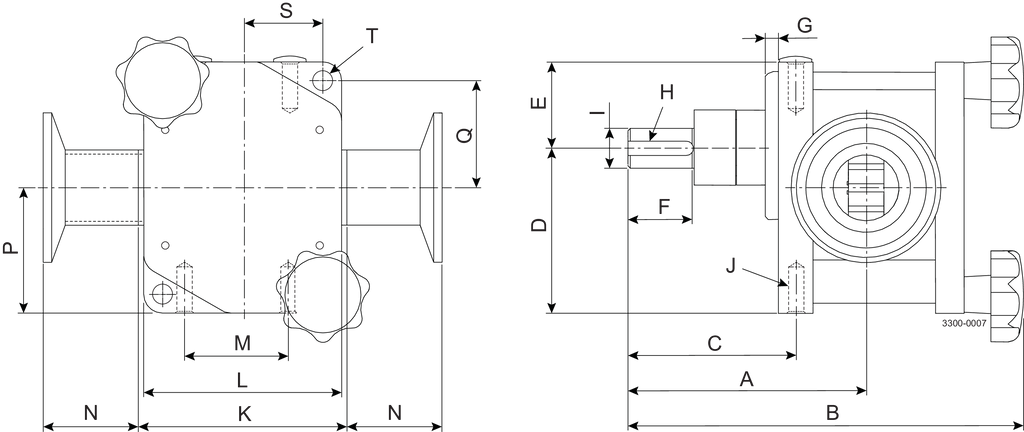

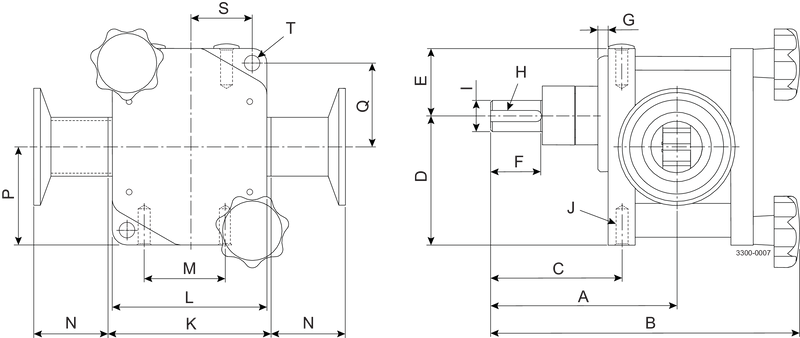

Dimension A 89 mm
Dimension B 159 mm
Dimension C 52 mm
Dimension D 57 mm
Dimension E 28 mm
Dimension F 20 mm
Dimension L 67 mm
Dimension K 67 mm
Dimension S 67 mm
Dimension T ø6.5 mm
Dimension H 67 mm
Dimension I 67 mm
Dimension J 67 mm
Dimension M 67mm
Dimension N 67 mm
Dimension Q 67 mm
