Circular Type HLSD-2

Circular Type HLSD-2

HLSD-2 200/10 BAR, MAX. 250DEG - C, 4 BOLTS, EPDM, MATERIAL 1.4404, PED 97/23/EU
Manufacturer:Alfa Laval
Item number: 9613460201
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Delivery time:On request
  • Range: Circular pressure covers
  • Size mm: 200
  • Material: 1.4404 (316L)
  • Inside surface quality: Semi bright Ra≤1.6 µm
  • Position on tank: Above liquid level - on top of the tank, Below liquid level - on side of the tank
  • Number of bolts: 4
  • Handle design: Handwheel
  • Pressure type: Over
  • Min pressure bar: -1

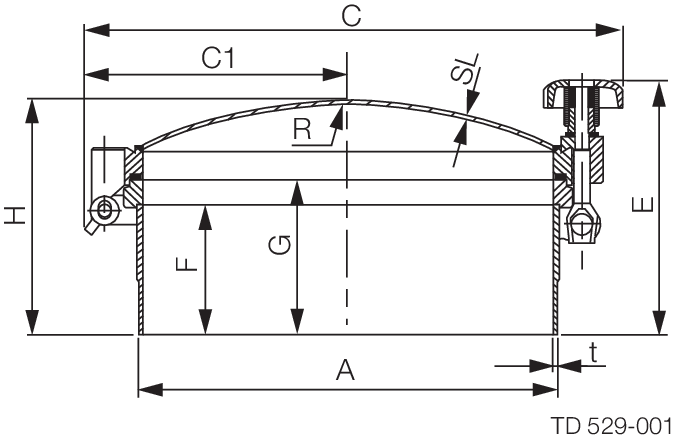

  • Frame height: 150
  • Item weight: 11.87 kg
  • Country of origin: Germany
