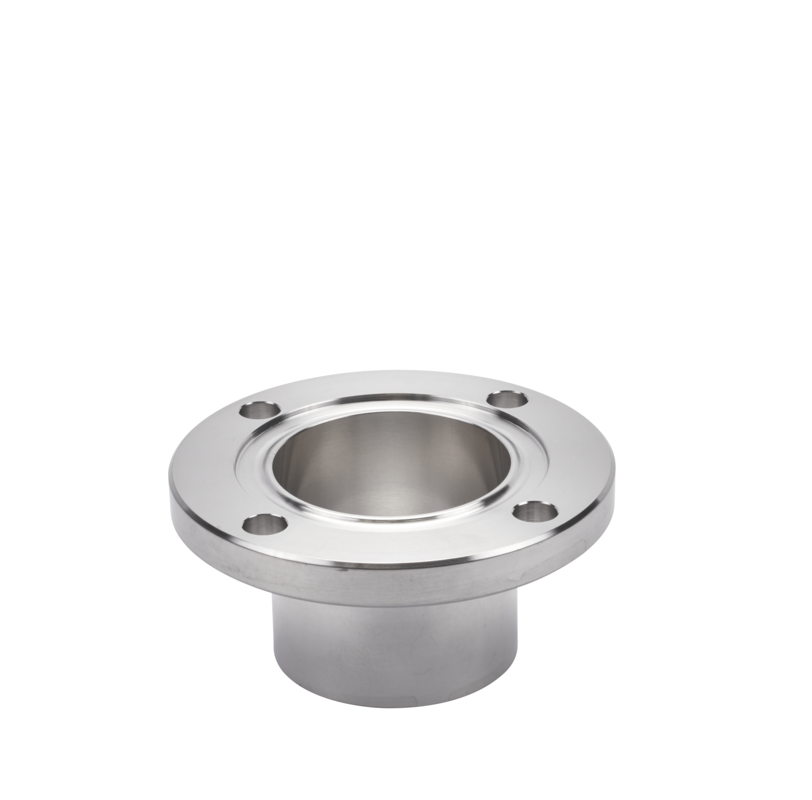

Flange BF DN125 H3 1.4404 (316L) DIN 11864-2
Flange BF DN125 H3 1.4404 (316L) DIN 11864-2
Roll over image to zoom in Click on image to zoom
Flange BF DN125 H3 1.4404 (316L) DIN 11864-2
Flange BF DN125 H3 1.4404 (316L) DIN 11864-2

Flange BF DN125 H3 1.4404 (316L) DIN 11864-2

FLANGE BF DN125 H3 1.4404 - DIN 11864-2
Manufacturer:Alfa Laval
Item number: 9615331013
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Delivery time:On request
  • Type: Flange
  • Design: BF collar
  • Standard: DIN 11864-2
  • Material: 1.4404 (316L)
  • Size: DN125
  • Finish: H3 (ID=0.8/OD=1.0)
  • Connection Type: Weld ends
  • Item Weight: 1.85 kg
Price:
€358,28

Shipping calculated at checkout

Prices shown are without VAT.

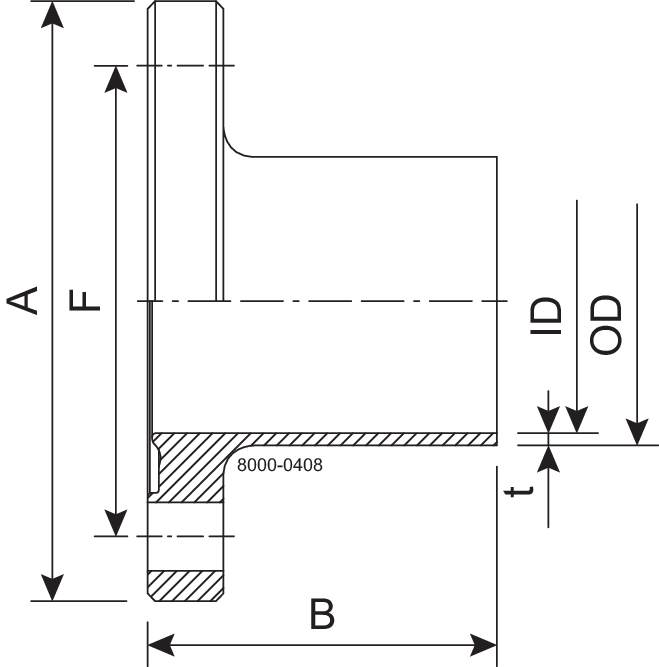

A: 183
B: 60
F: 161
OD/ID x t: 129.00/125.00 x 2.00
