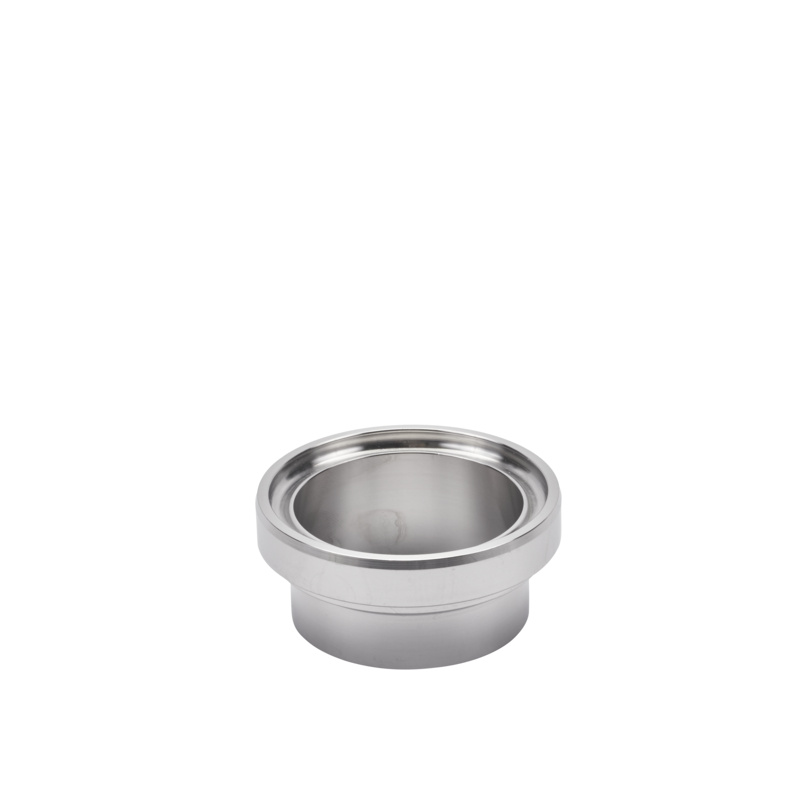

Liner BS DN20 H3 1.4404 (316L) DIN 11853-1
Liner BS DN20 H3 1.4404 (316L) DIN 11853-1
Roll over image to zoom in Click on image to zoom
Liner BS DN20 H3 1.4404 (316L) DIN 11853-1
Liner BS DN20 H3 1.4404 (316L) DIN 11853-1

Liner BS DN20 H3 1.4404 (316L) DIN 11853-1

LINER BS DN20 H3 1.4404 - DIN 11853-1
Manufacturer:Alfa Laval
Item number: 9615363103
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Delivery time:3-5 days
  • Type: Liner
  • Design: BS
  • Standard: DIN 11853-1
  • Material: 1.4404 (316L)
  • Size: DN20
  • Finish: H3 (ID=0.8/OD=1.0)
  • Connection Type: Weld ends
  • Item Weight: 0.08 kg
Price:
€20,82

Shipping calculated at checkout

Prices shown are without VAT.

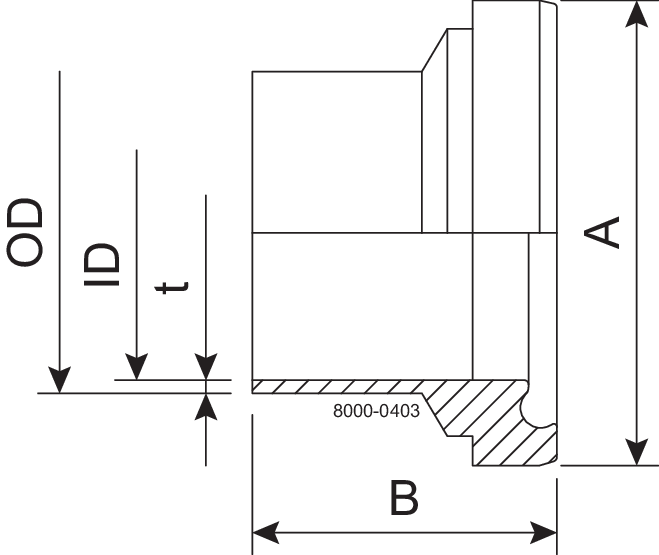

A: 35.9
B: 18
OD/ID x t: 23.00/20.00 x 1.50
