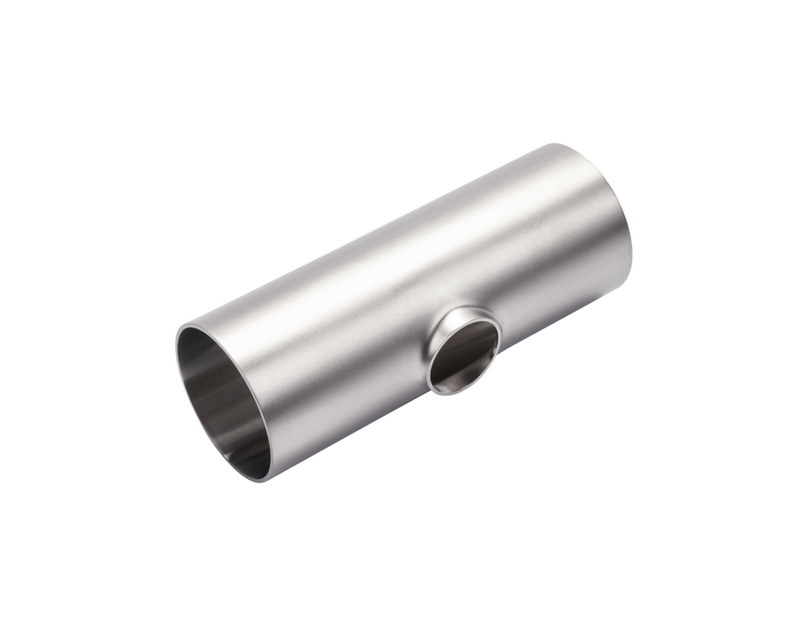

TEE RTK DN150/100 HSF2 1.4307 - DIN 11852
Manufacturer:Alfa Laval
Item number: 9615227929
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Delivery time:3-5 days
  • Type: Tee
  • Design: Reduced Tee Short, RTK
  • Standard: DIN 11852 EN 10374-A
  • Material: 1.4307 (304L)
  • Size: DN150
  • Second Size: DN100
  • Finish: HSF2 (ID=0.8/OD=1.6)
  • Connection Type: Weld ends
  • Item Weight: 0.1 kg
Price:
€268,05

Shipping calculated at checkout

Prices shown are without VAT.

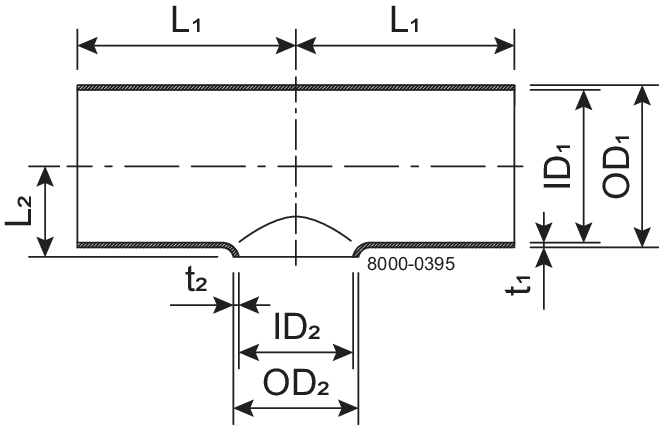

L1 (mm): 225
L2 (mm): 83
OD1/ID1 x t1: 154.00/150.00 x 2.00
OD2/ID2 x t2: 104.00/100.00 x 2.00
