Tri-Clamp® B7IWWMS Reducing Tees 0.5" 1.5" SF1 (PL) 316L ASME BPE Weld and Weld and TriClamp
Tri-Clamp® B7IWWMS Reducing Tees 0.5" 1.5" SF1 (PL) 316L ASME BPE Weld and Weld and TriClamp
Roll over image to zoom in Click on image to zoom
Tri-Clamp® B7IWWMS Reducing Tees 0.5" 1.5" SF1 (PL) 316L ASME BPE Weld and Weld and TriClamp
Tri-Clamp® B7IWWMS Reducing Tees 0.5" 1.5" SF1 (PL) 316L ASME BPE Weld and Weld and TriClamp

Tri-Clamp® B7IWWMS Reducing Tees 0.5" 1.5" SF1 (PL) 316L ASME BPE Weld and Weld and TriClamp

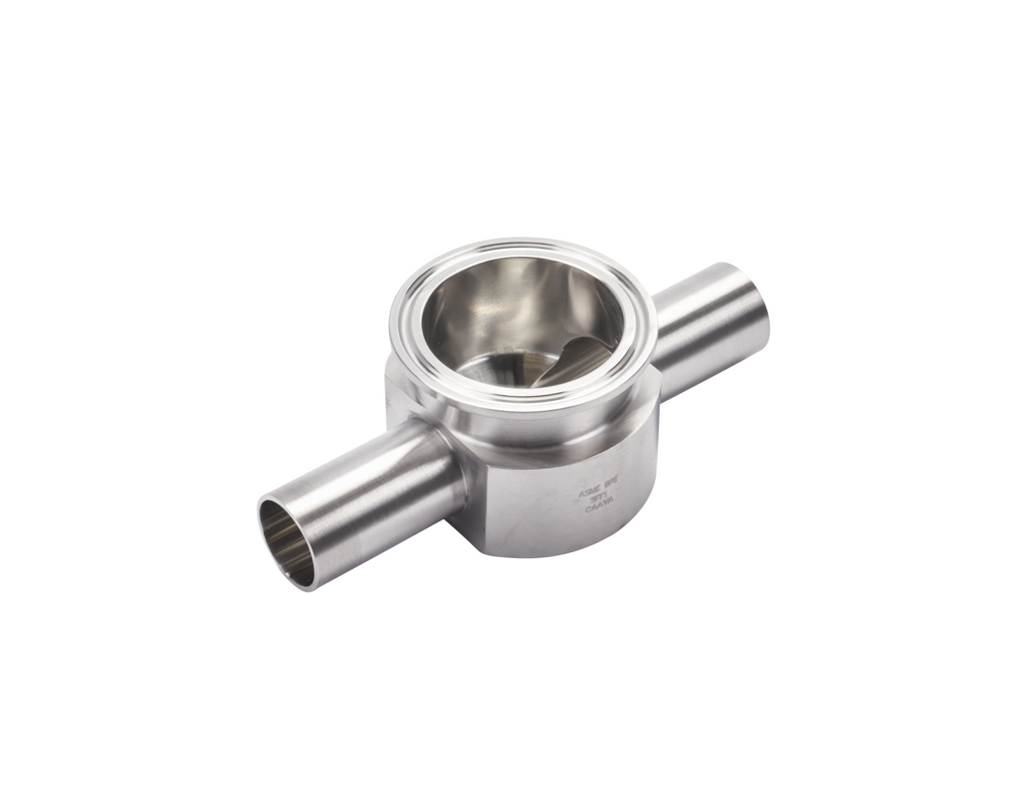

B7IWWMS-1/2 X 1 1/2-316L-PL - BPE WXTC INSTR'T T 20RA SF1
Manufacturer:Alfa Laval
Item number: 241737
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:3-5 days
  • Type: Reducing Tees
  • Design: B7IWWMS
  • Standard: ASME BPE
  • Material: 316L
  • Size: 0.5
  • Second Size: 1.5
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Weld, Weld, TriClamp
  • Item Weight: 0.378 kg
  • Country of origin: United States
Price:
€1.062,57
Prices shown are without VAT.

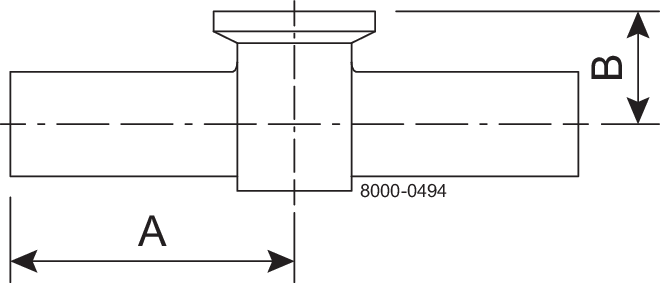

A: 63.5
B: 22.2
