Tri-Clamp® Ferrule KL DN80 H3 1.4404 (316L) DIN 32676
Tri-Clamp® Ferrule KL DN80 H3 1.4404 (316L) DIN 32676
Roll over image to zoom in Click on image to zoom
Tri-Clamp® Ferrule KL DN80 H3 1.4404 (316L) DIN 32676
Tri-Clamp® Ferrule KL DN80 H3 1.4404 (316L) DIN 32676

Tri-Clamp® Ferrule KL DN80 H3 1.4404 (316L) DIN 32676

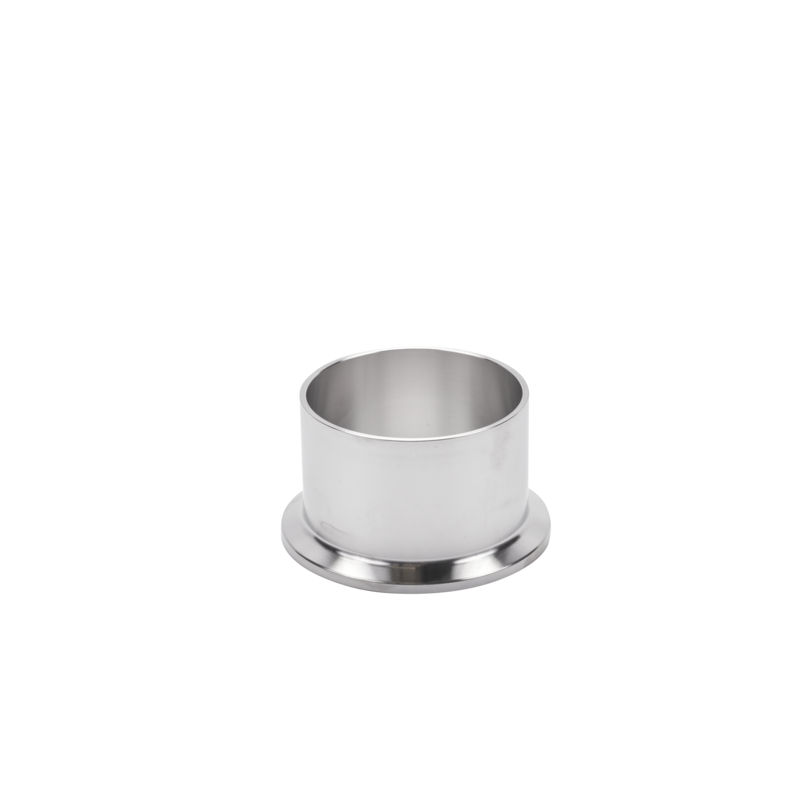

FERRULE KL DN80 H3 1.4404 - DIN 32676
Manufacturer:Alfa Laval
Item number: 9613444009
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Delivery time:3-5 days
  • Type: Ferrule
  • Design: KL long
  • Standard: DIN 32676
  • Material: 1.4404 (316L)
  • Size: DN80
  • Finish: H3 (ID=0.8/OD=1.0)
  • Connection Type: TriClamp, Weld
  • Item Weight: 0.351 kg
Price:
€69,13

Shipping calculated at checkout

Prices shown are without VAT.

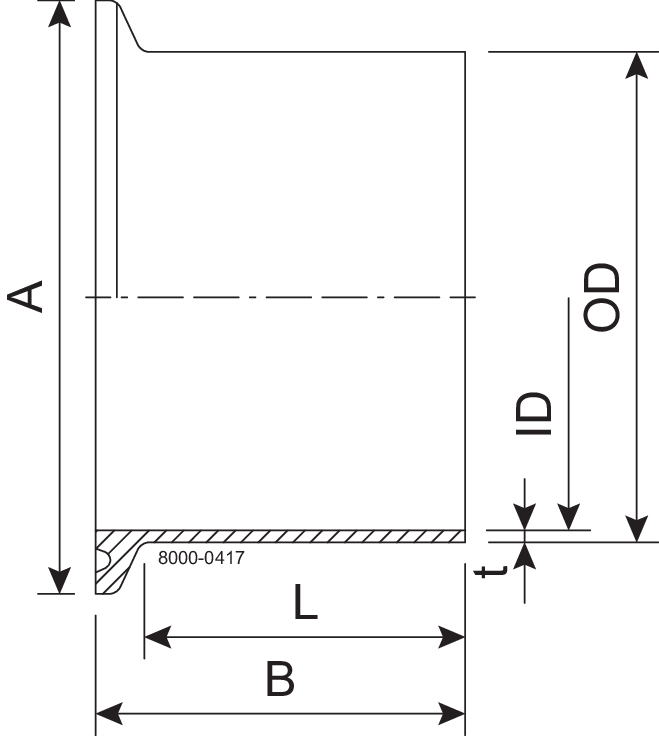

A: 106
B: 48
L: 42
OD/ID x t: 85.00/81.00 x 2.00
