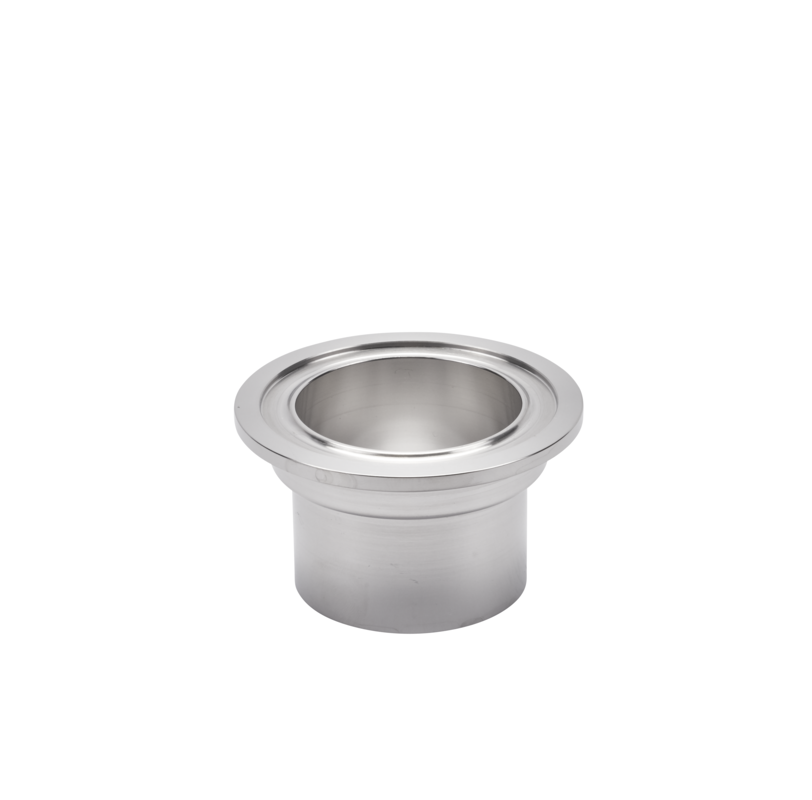

LINER BKS DN25 H3 1.4404 - DIN 11864-3
Manufacturer:Alfa Laval
Item number: 9613403954
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Delivery time:3-5 days
  • Type: Liner
  • Design: BKS collar
  • Standard: DIN 11864-3
  • Material: 1.4404 (316L)
  • Size: DN25
  • Finish: H3 (ID=0.8/OD=1.0)
  • Connection Type: TriClamp, Weld
  • Item Weight: 0.12 kg
  • Country of origin: Germany
Price:
€65,99

Shipping calculated at checkout

Prices shown are without VAT.

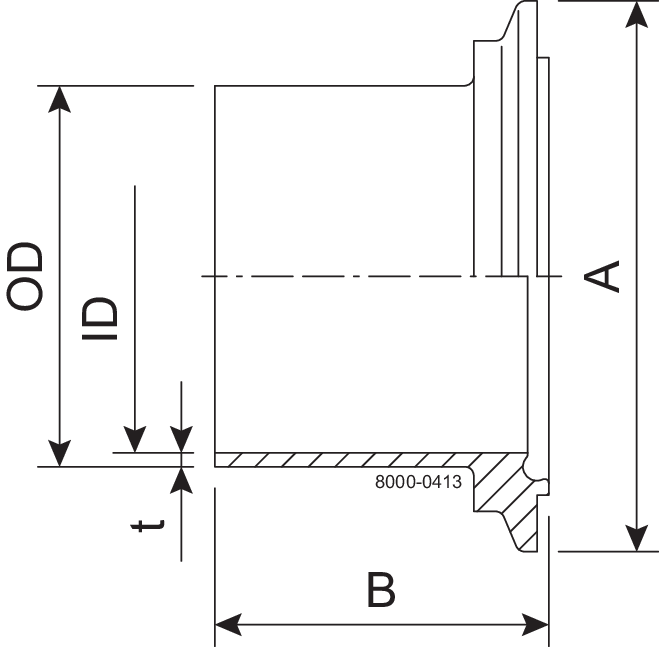

A: 50.5
B: 38.5
OD/ID x t: 29.00/26.00 x 1.50

Back to product category

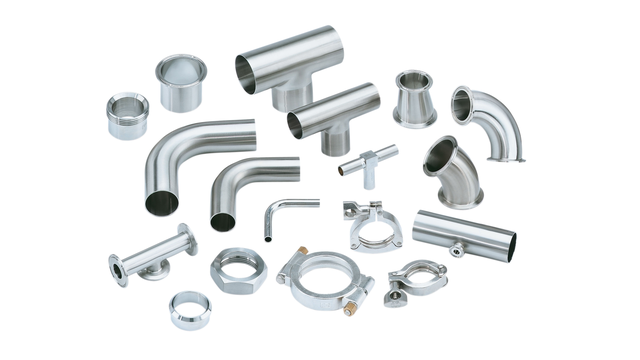

Hygienic fittings DIN EN 10357-A
