Tri-Clamp® Liner NKS DN10 H3 1.4404 (316L) DIN 11864-3
Tri-Clamp® Liner NKS DN10 H3 1.4404 (316L) DIN 11864-3
Tri-Clamp® Liner NKS DN10 H3 1.4404 (316L) DIN 11864-3
Roll over image to zoom in Click on image to zoom
Tri-Clamp® Liner NKS DN10 H3 1.4404 (316L) DIN 11864-3
Tri-Clamp® Liner NKS DN10 H3 1.4404 (316L) DIN 11864-3
Tri-Clamp® Liner NKS DN10 H3 1.4404 (316L) DIN 11864-3

Tri-Clamp® Liner NKS DN10 H3 1.4404 (316L) DIN 11864-3

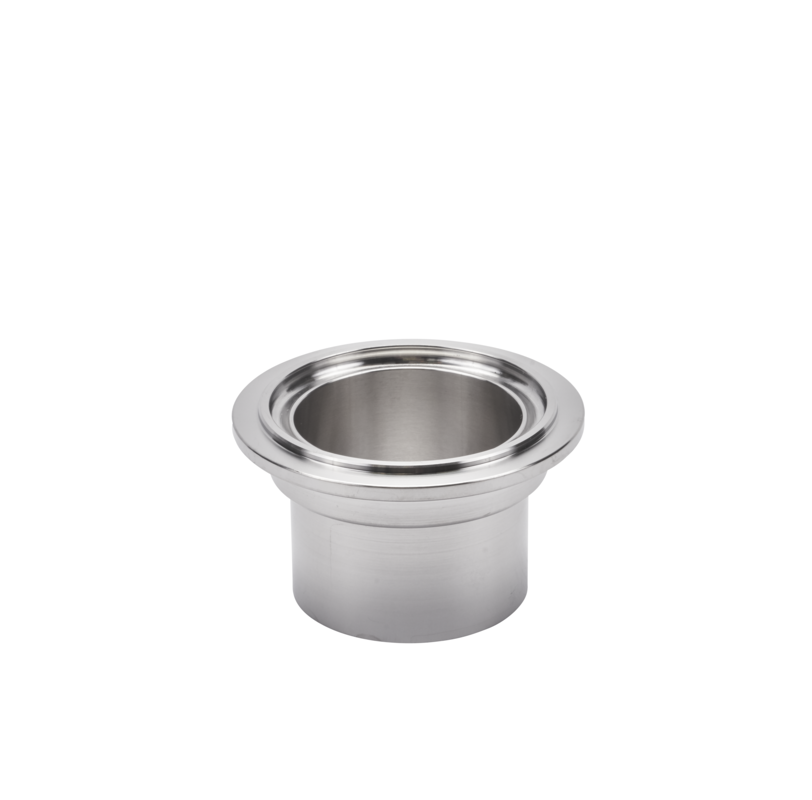

LINER NKS DN10 H3 1.4404 - DIN 11864-3
Manufacturer:Alfa Laval
Item number: 9613403941
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Delivery time:3-5 days
  • Type: Liner
  • Design: NKS groove
  • Standard: DIN 11864-3
  • Material: 1.4404 (316L)
  • Size: DN10
  • Finish: H3 (ID=0.8/OD=1.0)
  • Connection Type: TriClamp, Weld
  • Item Weight: 0.071 kg
Price:
€61,66

Shipping calculated at checkout

Prices shown are without VAT.

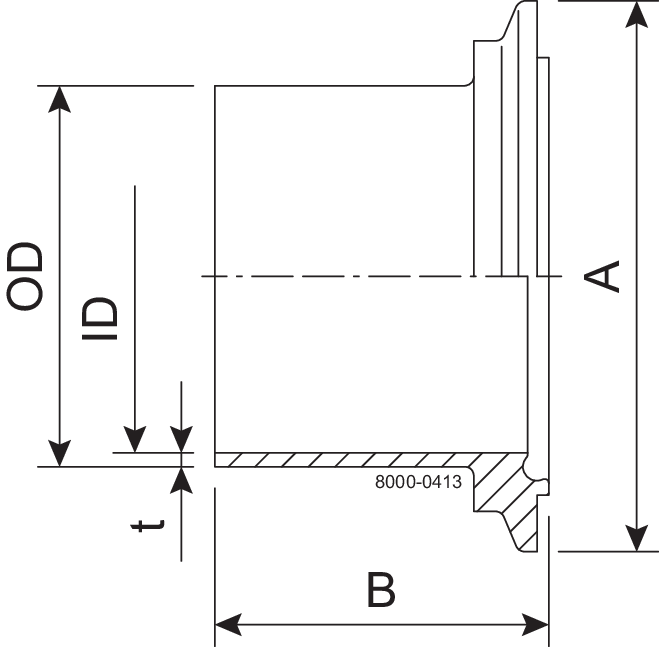

A: 34
B: 39.5
OD/ID x t: 13.00/10.00 x 1.50
